NOMAD X

System Overview

NOMAD X is a trailer-mounted Mobile X-Ray Vehicle and Container Scanning System — all components integrated on a single trailer unit. It brings Dual Energy LINAC scanning capability — the same technology used in permanent fixed installations — to any location in the world, without civil works, foundations or permanent infrastructure.

Offering both Gantry Mode for stationary vehicle scanning and Portal Mode for continuous drive-through inspection, NOMAD X delivers up to 60 truck scans per hour at remote borders, temporary checkpoints and surge operations where a fixed system cannot be installed.

CE Certified

Dual Energy LINAC

Gantry + Portal Mode

Single Trailer — Self-Contained

24/7 Continuous Operation

AI Image Processing

Technical Specifications

Engineering Data

Download Datasheet (PDF)

Parameter

Specification

X-Ray Source

Dual Energy LINACSame as fixed TITANSON

Scanning Size (H × W)

4.7m × 2.8mExtendable upon request

System Integration

All components on a single trailerKey Feature

Steel Penetration

High Penetration

Wire Resolution

High Resolution

Material Discrimination

Organic / Inorganic / Mixed

Operation Time

24/7 continuous operation

Parameter

Specification

Scanning Modes

Gantry Mode (vehicle stationary) + Portal Mode (drive-through)

Gantry Mode Capacity

20 trucks per hourScan speed: 0.40 m/s

Portal Mode Capacity

60 trucks per hourMinimum vehicle speed: 5 km/h

Radiation Safety

Complies with all necessary precautions for operator and driver safety

Target Vehicles

Trucks, trailers, containers, cars, vans — any wheeled vehicle

Parameter

Specification

Processing Method

AI Driven Methods + Conventional Methods

Material Discrimination

Organic / Inorganic / Mixed — colour-coded dual energy output

AI Detection

Automated threat flagging — weapons, explosives, contraband, cigarettes, notes

Image Storage

All scan images stored and retrievable for post-event review

Parameter

Specification

Operating Temperature

−30°C to +50°CExtended range available on request

Humidity

Up to 95% RH (non-condensing)Extended range available on request

Radiation Safety

Compliant — Ionising Radiation Directive 2013/59/Euratom

Machine Safety

CE — Machine Safety Directive 2006/42/EC

Quality Standard

ISO 9001:2015

Transport

Standard road-legal trailer — no special transport permit required

System Operation

How NOMAD X Works

Everything on one trailer. Drive to site, raise the system, begin scanning. No civil works, no foundations, no advance installation.

Step 01

The System Arrives as a Single Trailer Unit

NOMAD X arrives on-site as a standard road trailer. All components — the X-Ray source, detector arrays, control workstation, power systems and radiation safety enclosure — are pre-integrated on a single trailer chassis.

No advance site preparation is needed. No concrete foundations, no permanent electrical installation, no civil engineering. The system is towed to position and site setup begins immediately on arrival.

Single trailer unit No civil works Standard road-legal No foundations required

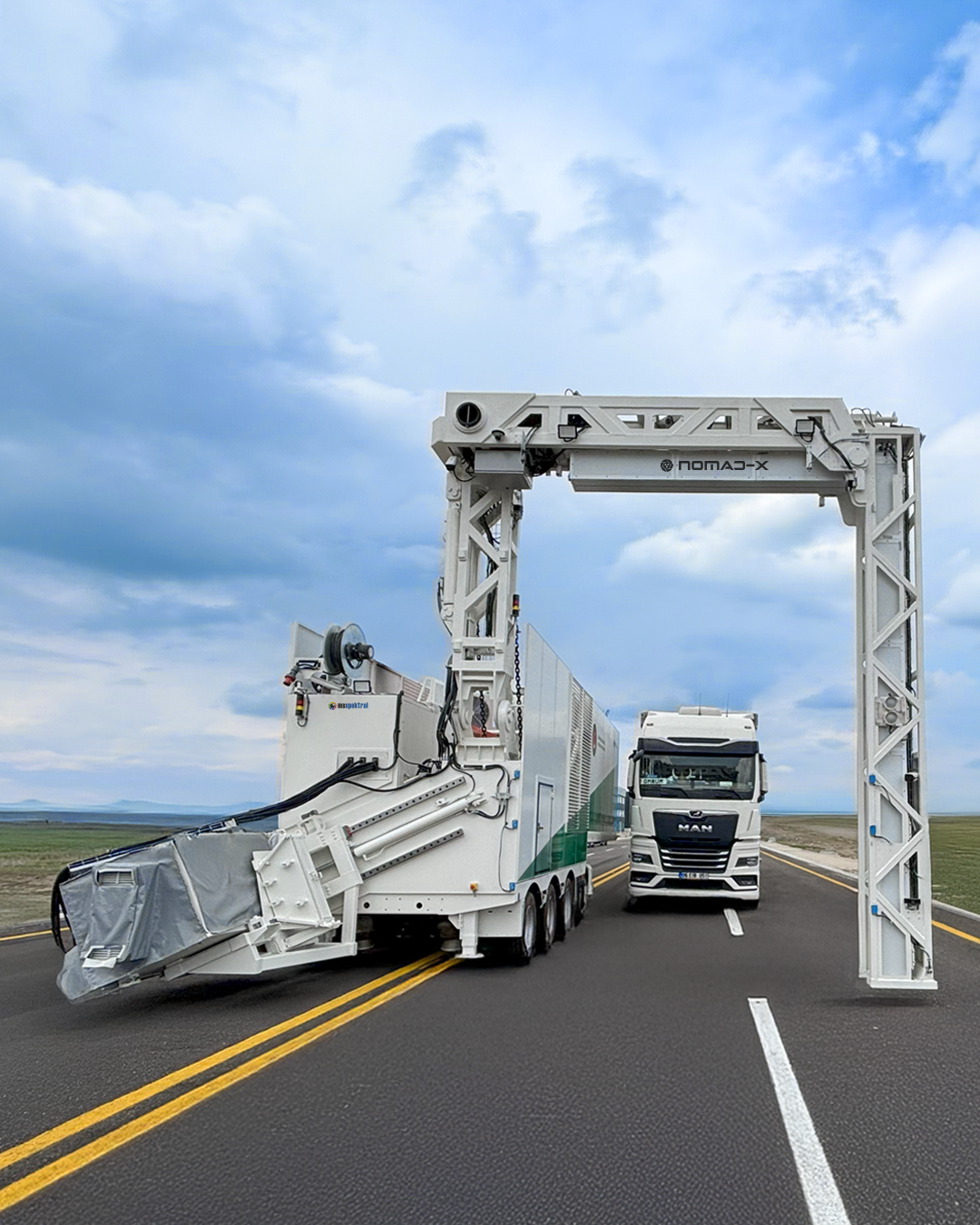

NOMAD X trailer arriving at port checkpoint

All components pre-integrated — NOMAD X arrives ready to deploy

Step 02

Dual Energy LINAC Scans the Vehicle

In Gantry Mode, the scanning arm traverses a stationary vehicle at 0.40 m/s — delivering 20 full-vehicle scans per hour. In Portal Mode, vehicles drive through at a minimum of 5 km/h for continuous throughput of up to 60 trucks per hour, without stopping.

The Dual Energy LINAC beam simultaneously measures attenuation at two energy levels across the full 4.7m × 2.8m aperture — penetrating dense steel cargo and resolving material composition throughout the full depth of a loaded container.

Dual Energy LINAC 4.7m × 2.8m aperture Gantry: 20 trucks/hr Portal: 60 trucks/hr

NOMAD X scanning truck in portal mode at border checkpoint

Portal Mode — vehicles drive through at min. 5 km/h, no stop required

Step 03

AI and Operator Review — Then Relocate

Scan data is processed simultaneously by AI-driven and conventional image processing. Colour-coded dual energy output shows organic, inorganic and mixed material profiles. AI flags suspicious regions — weapons, explosives, contraband, cigarettes — ranked by priority for operator decision.

When the operation ends, the system is retracted, hitched to a tractor unit and driven to the next deployment. 24/7 continuous operation is supported — the system runs without interruption across extended shifts.

AI threat detection Organic / Inorganic / Mixed 24/7 operation Fully relocatable

Operator workstation — AI-assisted X-ray threat analysis

AI analysis flags and ranks threats in real time — operator makes final decision

Technology Note

NOMAD X vs. TITANSON — Mobile vs. Fixed

Both systems use identical Dual Energy LINAC technology. The difference is infrastructure: one needs foundations, one needs a tractor unit.

NOMAD X — Mobile

All components on a single trailer — no civil works
Dual Energy LINAC — identical penetration to fixed systems
60 trucks/hr in Portal Mode
Fully relocatable — drive to any site worldwide
24/7 continuous operation
Rapid deployment — operational on arrival
Slightly lower gantry throughput vs. permanent fixed systems

TITANSON — Fixed Gantry

Permanent installation — maximum throughput (100 trucks/hr Portal)
Dual Energy LINAC — identical penetration
Extended scan length up to 20m
Cross-system data sharing between networked TITAN units
Requires foundations and permanent civil installation
Fixed location — cannot be relocated

Deployment

Where NOMAD X Operates

Engineered for every operational environment where a fixed installation is impractical, impossible or not yet built.

Remote Land Borders

Where permanent infrastructure doesn't exist or can't be justified commercially. NOMAD X provides full Dual Energy LINAC scanning at any border crossing in the world.

Both modes available No infrastructure needed

Port & Terminal Surge

When fixed systems are overloaded, offline for maintenance or insufficient for peak volumes. NOMAD X deploys alongside existing infrastructure within hours.

Portal Mode preferred 60 trucks/hr capacity

International Operations

NOMAD X can be transported internationally by road or sea — deploying scanning capability to any country in the world as a complete, self-contained unit.

Road or sea transport Operational on arrival

Contingency & Crisis Response

Rapid deployment to support border security operations during crises, mass migration events or enforcement surges — on the ground and operational faster than any alternative.

Rapid deployment 24/7 continuous
