Gantrix™ Series · 02 of 06

PHANTOM X

Backscatter X-Ray Mobile & Portal Screening System

"Surface intelligence. Concealment detected — while the van keeps moving."

1–10

km/h scan speed

Motion Scan Mode

operating modes

Motion Scan + Portal

LHD

Default config

RHD available on request

High

Penetration & Resolution

Backscatter technology

Request a System Assessment View Technical Specs ↓

MS-XMTS-BH

System Overview

PHANTOM X is a mobile scanning solution housed in a standard van — enabling rapid X-Ray screening of vehicles and cargo at any location without fixed infrastructure. The system employs advanced Backscatter technology for detailed, sharp imaging that surpasses conventional X-Ray in detecting concealed threats and contraband on vehicle surfaces and within cargo.

Unlike transmission systems that require the target to pass through a fixed portal, PHANTOM X drives alongside stationary vehicles in Motion Scan Mode — or operates as a stationary portal when deployed at a checkpoint. This dual-mode capability gives operators flexibility no fixed system can match.

CE Certified

Backscatter Technology

Motion Scan Mode

Portal Mode

AI Image Processing

Remote Operating Capability

Scan Output

Backscatter Imaging — What the Operator Sees

Backscatter technology detects radiation reflected from the target surface — uniquely effective for organic and low-density threats that transmission imaging can miss. AI-driven processing flags weapons, explosives and contraband in real time.

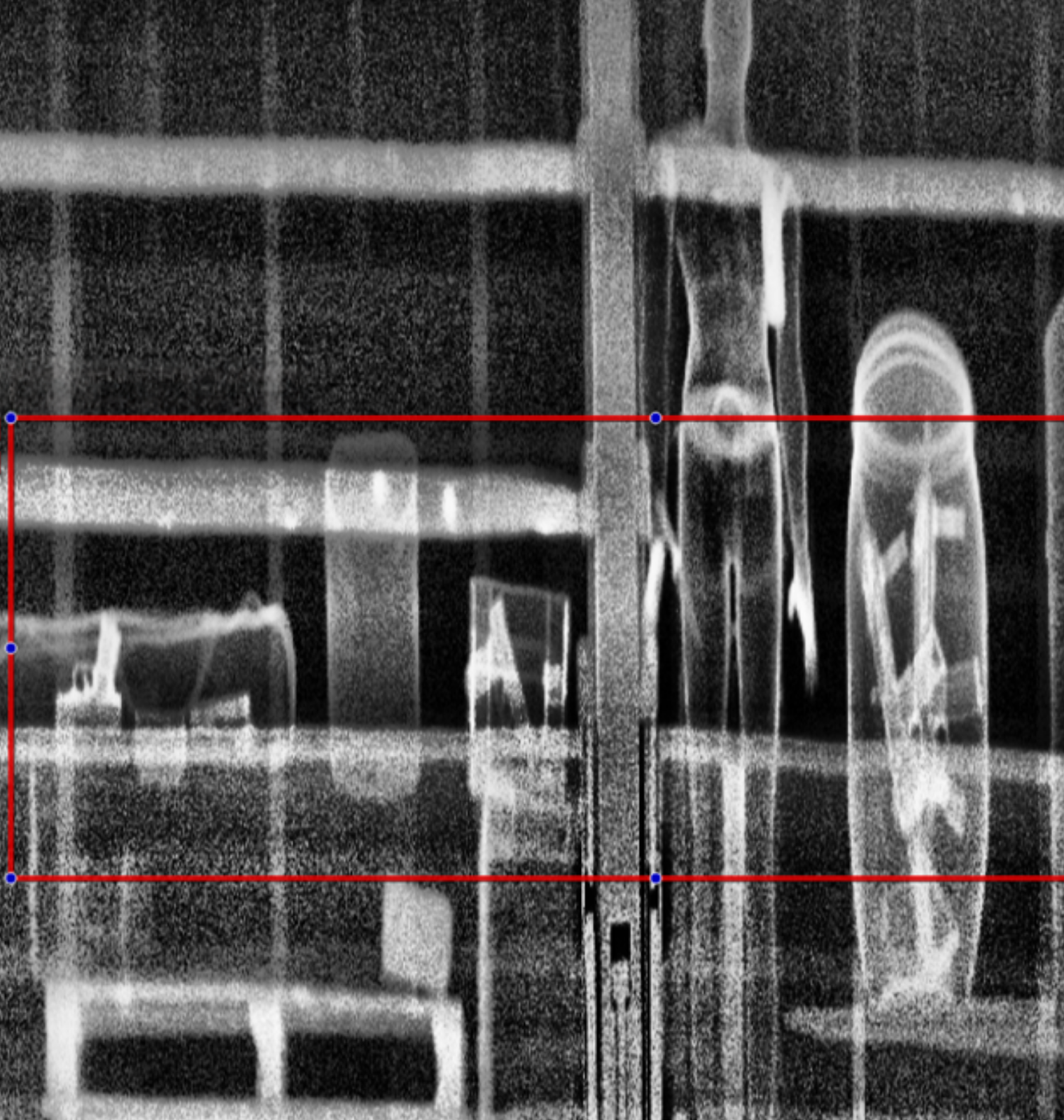

PHANTOM X backscatter scan output — AI threat detection

Organic / Explosive

Metallic / Dense

AI Threat Flag

Technical Specifications

Engineering Data

Download Datasheet (PDF)

Parameter

Specification

X-Ray Source

X-Ray GeneratorBackscatter

Scanning Modes

Motion Scan Mode / Portal Mode

Scanning Speed

1 km/h to 10 km/hMotion Scan Mode — van drives alongside stationary target

Steel Penetration

High Penetration

Wire Resolution

High Resolution

Durability

High operational availability in harsh environmental conditions

Parameter

Specification

Processing Method

AI Driven + Conventional Methods

Real-Time Scanning

Yes — live image generation during motion

Remote Operation

Yes — remote operating capabilityKey Feature

Detection Targets

Weapons, Explosives, Ammunition, Contraband, Organic threats

AI Detection

Automated threat flagging with AI-based image processing

Parameter

Specification

Operating Temperature

−30°C to +50°CExtended range available on request

Humidity

Up to 95% RH (non-condensing)Extended range available on request

All-Weather Operation

High operational availability in harsh environmental conditions

Platform

Standard commercial van — no specialist transport required

Parameter

Specification

Platform Vehicle

Standard commercial van — self-contained system

Driving Configuration

Default: Left-Hand Drive (LHD)Right-Hand Drive (RHD) available upon request

Deployment

No civil works, no fixed infrastructure requiredDrive to site and operate immediately

Motion Scan Mode

Van drives alongside stationary vehicle at 1–10 km/h — full side scan

Portal Mode

Van parked at checkpoint — target vehicles drive past the scanning side

Certification

CE Declaration of Conformity · ISO 9001:2015

Mobile van scanning vehicle at roadside checkpoint

Mode 01 · Motion Scan

The Van Scans
While Moving.

In Motion Scan Mode, PHANTOM X drives slowly alongside a stationary vehicle or queue of vehicles at 1 to 10 km/h. The Backscatter X-Ray source emits a beam from the van's scanning side, and reflected radiation is captured by detector arrays — producing a continuous side-profile image of the target.

The operator monitors the real-time scan image from inside the van or via remote link. AI-driven analysis flags suspicious geometries and material signatures immediately. No target vehicle needs to move, stop at a portal or cooperate in any way.

1–10 km/h scan speed

Target stays stationary

Real-time image

Remote operation capable

Temporary checkpoint with vehicle scanning — Portal Mode deployment

Mode 02 · Portal Mode

Fixed Checkpoint
Deployment.

In Portal Mode, the van is positioned at the roadside and target vehicles drive past the scanning side at low speed. PHANTOM X functions as a temporary portal scanner — delivering full-vehicle side scans without any permanent installation.

The system can be set up and operational within minutes of arrival at any site. When the operation is complete, it drives away. No trace left behind.

No fixed installation

Operational in minutes

Fully relocatable

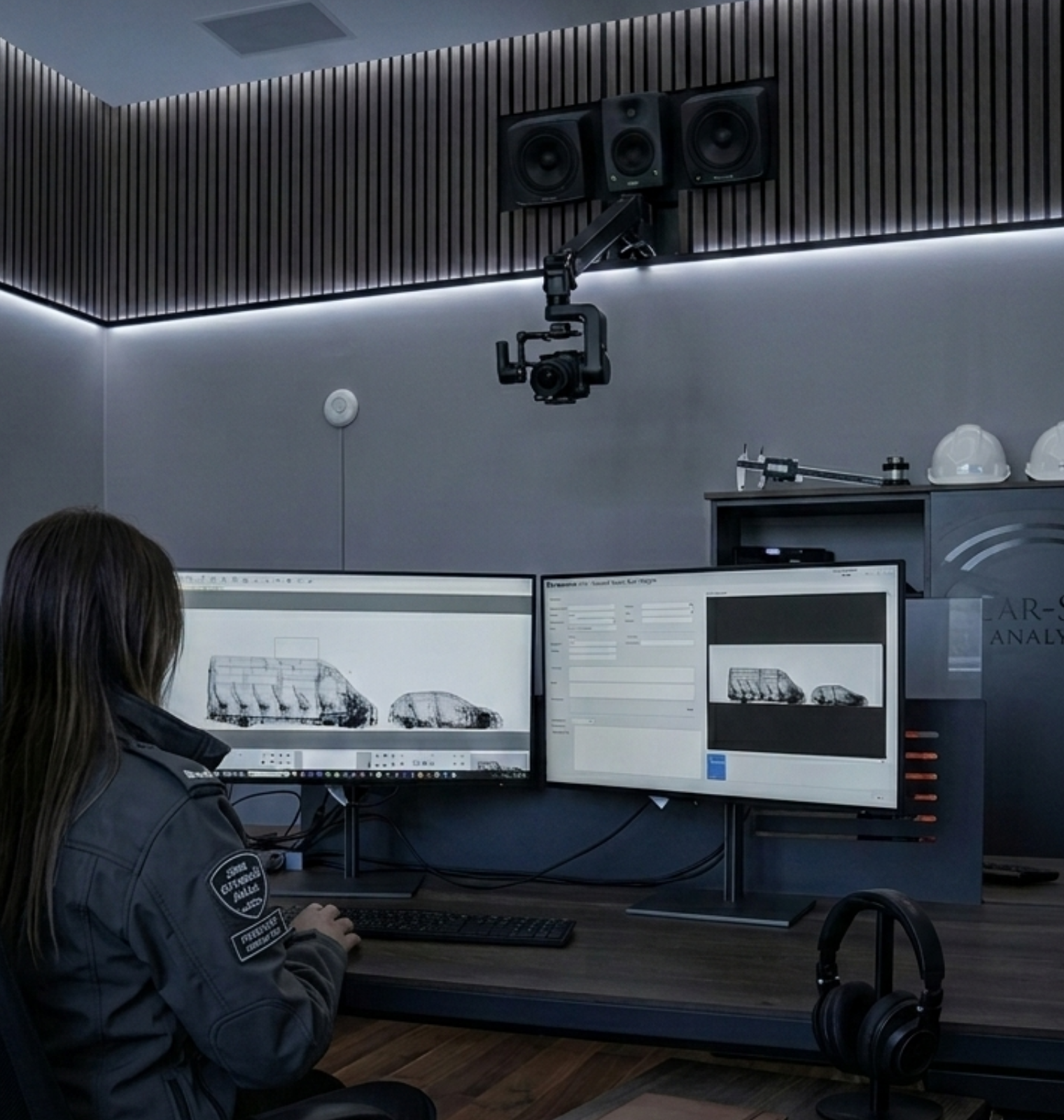

Operator screen showing AI-flagged backscatter scan with threat detection

Step 03 · Backscatter Imaging

Detects What
Transmission Misses.

Backscatter technology measures radiation reflected from the target surface — unlike transmission X-Ray, which measures radiation passing through. This makes PHANTOM X uniquely effective for detecting low-density organic threats: narcotics, explosives and smuggled persons concealed within vehicles or against the body.

AI-driven and conventional image processing methods run simultaneously. Detected signatures for weapons, explosives and ammunition are flagged in real time and ranked for operator review.

Backscatter — surface detection

Organic & low-density threats

AI threat flagging

Remote operator capability

Technology Note

Backscatter vs. Transmission X-Ray

Two fundamentally different detection principles — each with distinct operational strengths. Knowing which to deploy is the difference between finding a threat and missing it.

PHANTOM X — Backscatter

Measures reflected radiation from target surface
Highly effective for organic materials — narcotics, explosives
Van-mounted — fully mobile, no fixed infrastructure
Target vehicle stays stationary — covert capability
Personnel concealment detection
Lower dense-metal penetration vs LINAC transmission

TITANSON — Transmission (LINAC)

Measures radiation transmitted through the full vehicle
Maximum steel penetration — full container depth
High throughput — up to 100 trucks/hr in Portal Mode
Dual-energy material discrimination — organic / metal / mixed
Fixed installation — permanent site required
Less effective for low-density surface-level threats

Deployment

Where PHANTOM X Operates

Designed for operations where fixed infrastructure doesn't exist — or where covert capability and rapid relocation are mission-critical.

Temporary Checkpoints

No civil works, no advance notice. PHANTOM X arrives at any road, border crossing or entrance point and is operational within minutes.

Portal Mode preferred No infrastructure needed

Surge & Contingency Capacity

When a fixed checkpoint is overwhelmed or offline, PHANTOM X provides immediate additional scanning capacity — deployed from any staging location.

Motion Scan preferred Rapid relocation

Covert Vehicle Scanning

Motion Scan Mode allows PHANTOM X to scan a vehicle without the driver's awareness — driving alongside parked or queued vehicles as a plain-looking commercial van.

Motion Scan Mode Low-profile operation

Remote Borders & Events

Where fixed systems cannot be installed — remote land borders, large-scale events, disaster relief sites, military forward areas — PHANTOM X provides full vehicle scanning capability.

Self-contained system Both modes available

Next Step

Deploy PHANTOM X
at Your Next Operation.

Our engineers will evaluate your operational requirements — whether a temporary checkpoint, surge capacity or covert scanning capability — and recommend the right configuration.

Request a System Assessment View All Gantrix™ Systems
